RLA-23-12 Actuator
US$209.00
Integrated Motor Controller
In stock
1

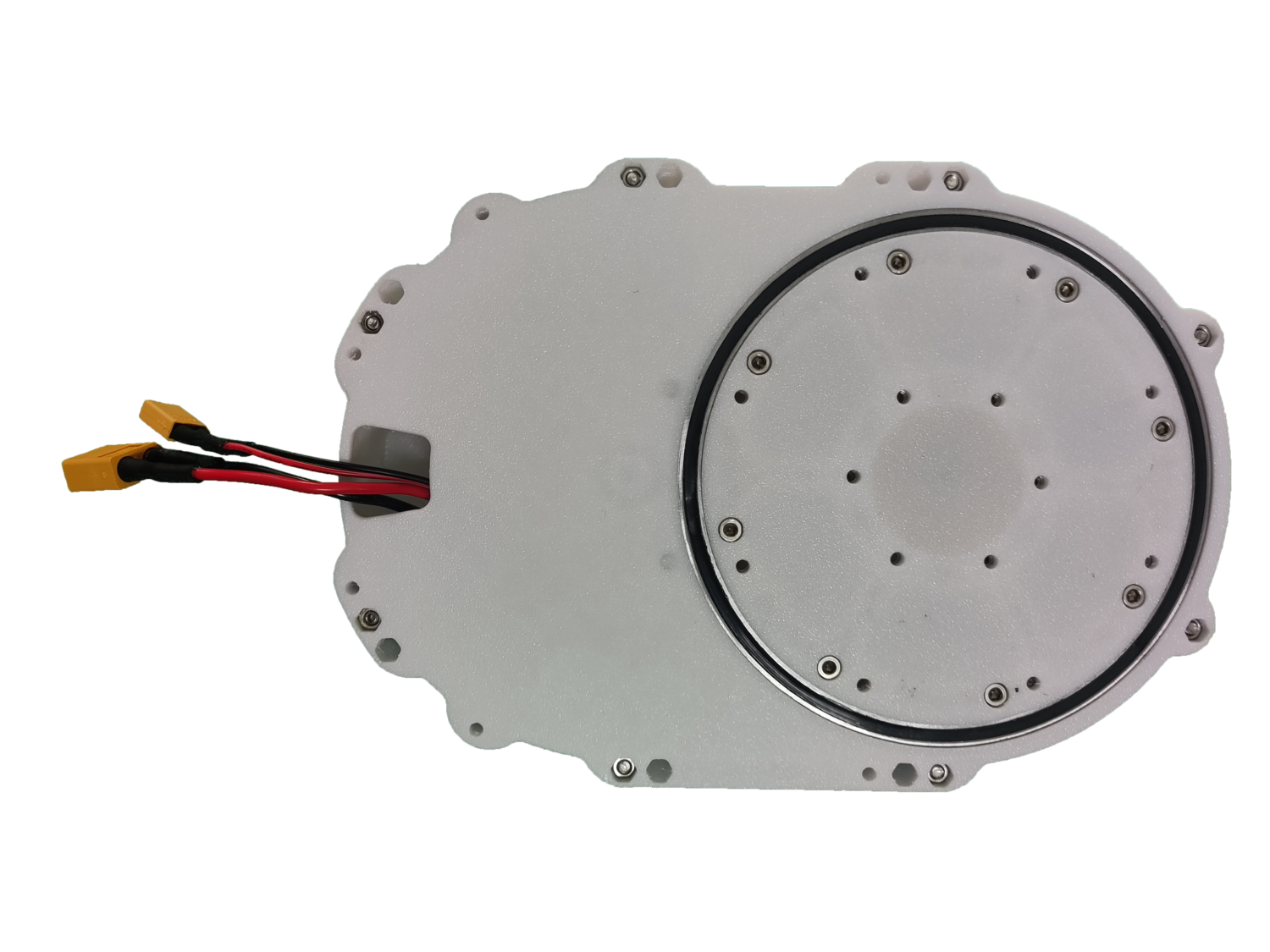

RLA-23-12 Actuator
Product Details
Optimised for lightweight human-sized robotics, RLA-23-12 provides unmatched value.
Applications include: a biped, quadruped, hexapod, 6 DoF robot arm, or a terrifyingly fast door opener...
Specifications
| Input voltage | 12 ~ 50v |
| Torque | 23Nm nominal / 47Nm peak |
| Output velocity | 12 rad/s (~120rpm) @ 33.6V |
| Total weight | 994g |
| Communication | CAN (1Mbps) |
| Control modes | Torque/Velocity/Position |
| Axial Load | 700N |
This actuator uses a COTS DGM motor controller with custom firmware. It shares most of the same CAN BUS protocol.
Documentation and CAD: Quick start guide
Please contact rboticlabs@gmail.com for quantities more than 12.
