RLA-23-12 Actuator (CAD + BoM)
+4
+3
+2

RLA-23-12 Actuator (CAD + BoM)

US$29.00
On Sale
was US$49.00 Save 41%
In stock
1
Share this product with your friends
ShareSharePin it
RLA-23-12 Actuator (CAD + BoM)
Product Details

Optimised for lightweight human-sized robots.

Example applications: a biped, quadruped, hexapod, 6 DoF robot arm, or a terrifyingly fast door opener...


Includes

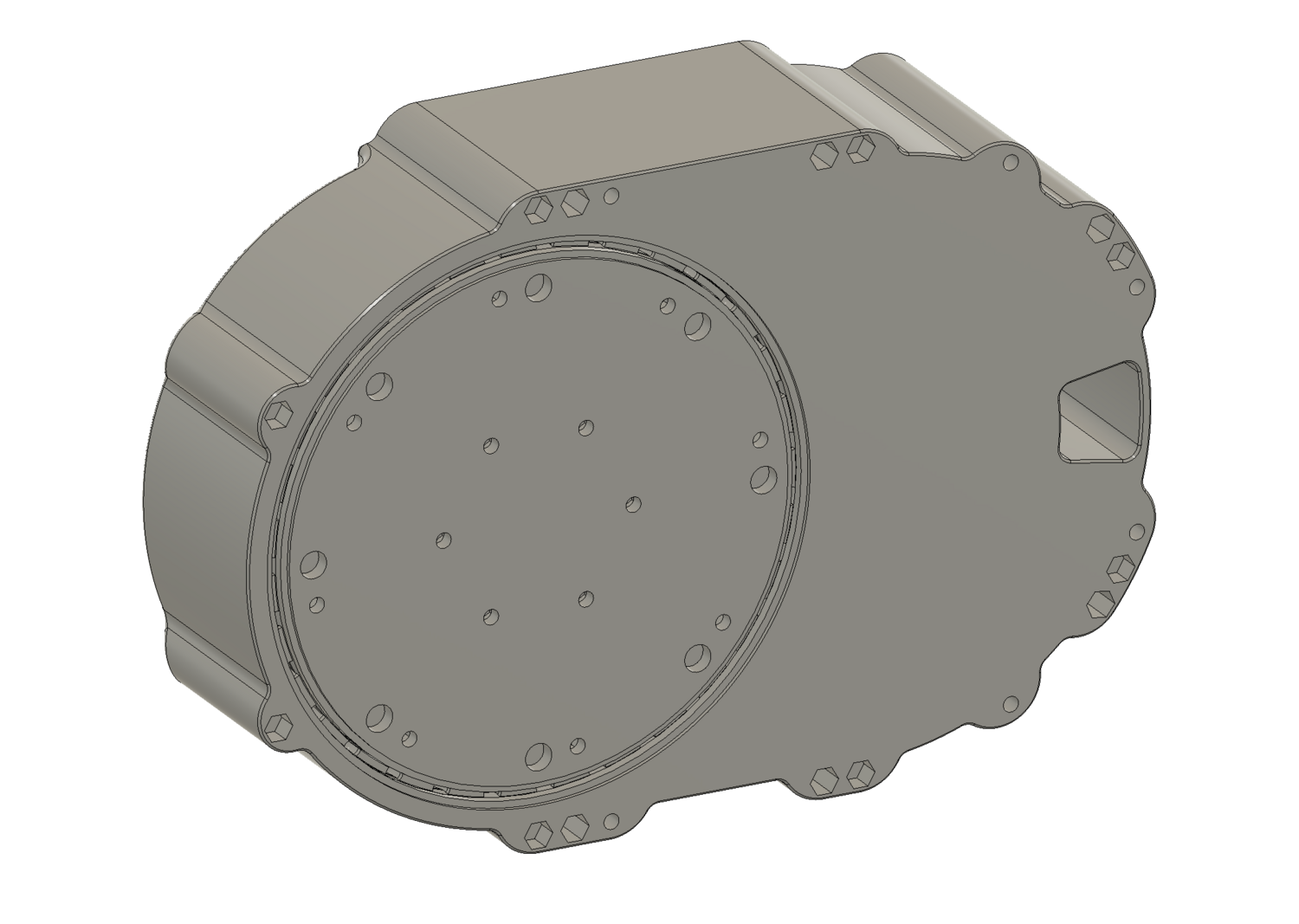

  • STEP file assembly of Actuator RLA-23-12
  • Bill of materials


Specifications

Input voltage 12 ~ 50v
Torque 23Nm nominal / 47Nm peak
Output velocity 12 rad/s (~120rpm) @ 33.6V
Total weight 994g
Communication CAN (1Mbps)
Control modes Torque/Velocity/Position
Axial Load 700N

This actuator uses a COTS DGM motor controller with custom firmware. It shares most of the same CAN BUS protocol.

Documentation and external CAD: Quick start guide


For educational and personal use only. Redistribution is strictly prohibited.
